Blue & Orange Longspan Medium-Duty Shelving Rack

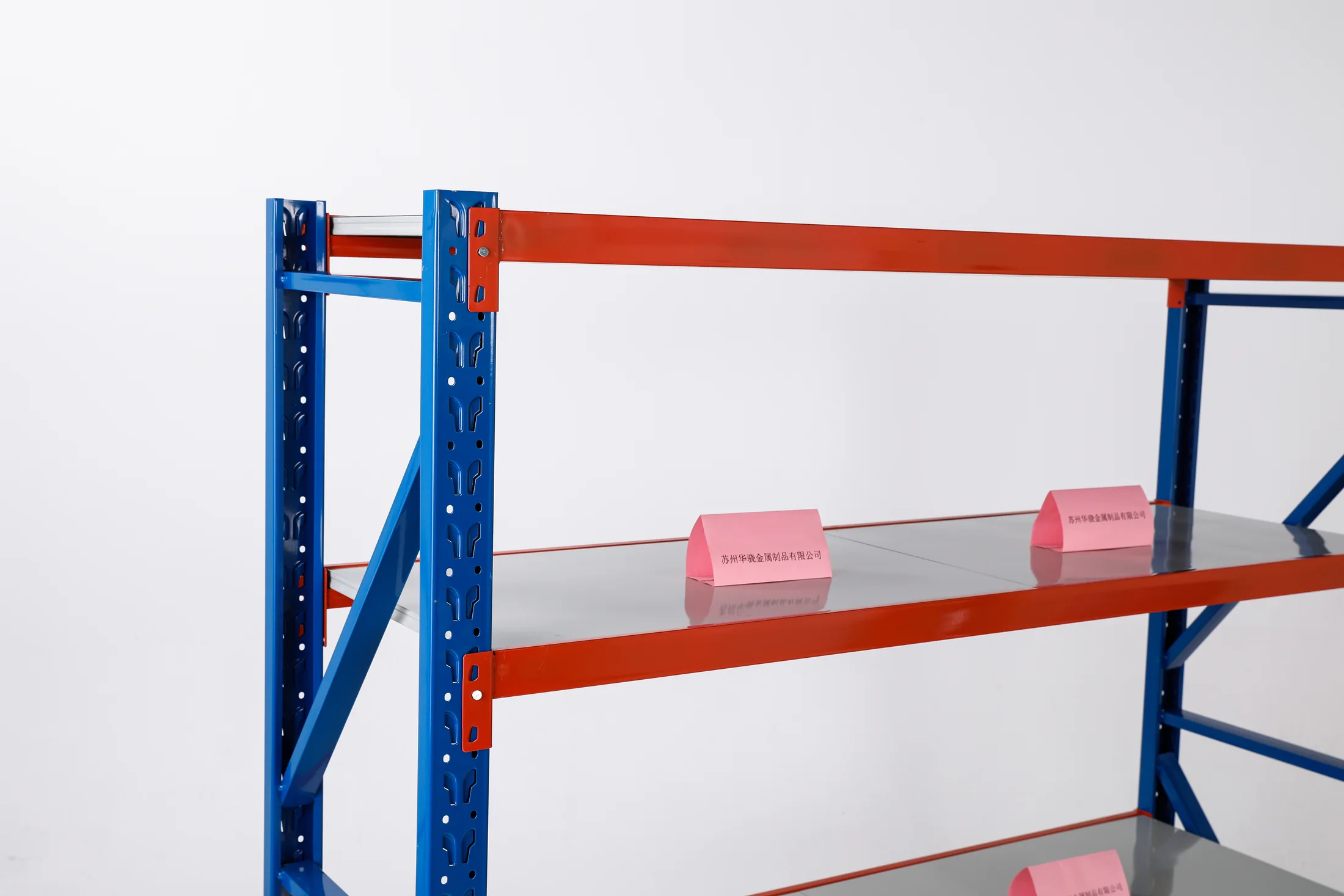

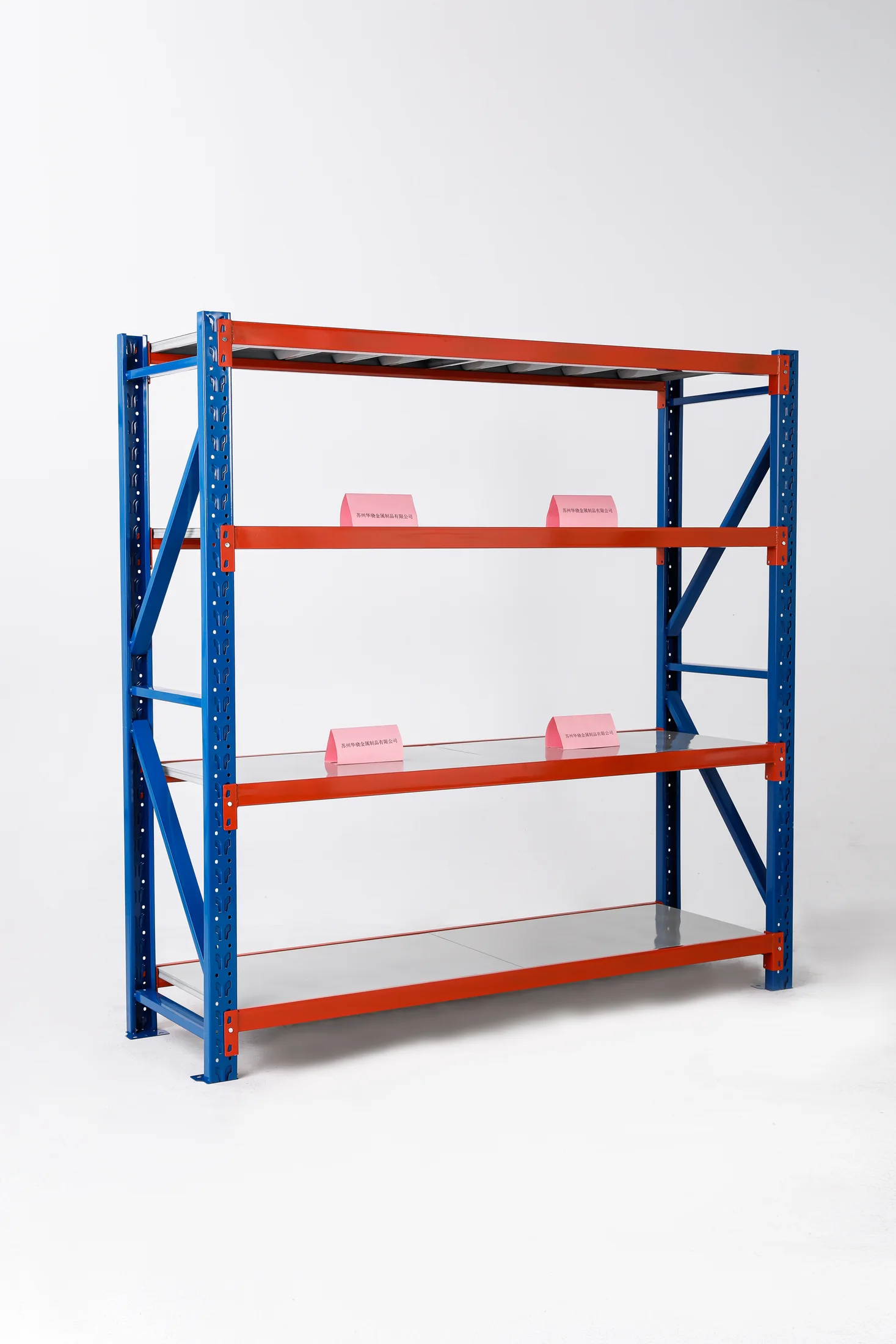

An adjustable blue and orange longspan medium-duty shelving rack with four steel-panel storage levels, hook-in beam connectors and braced upright frames. The open, modular design is suited to manually handled cartons, spare parts, tools and packaged inventory in warehouses and industrial stockrooms.
Key Features
- Longspan shelf layout provides wide, open storage levels for bulky cartons and parts
- Four adjustable steel-panel levels are shown for manual warehouse storage

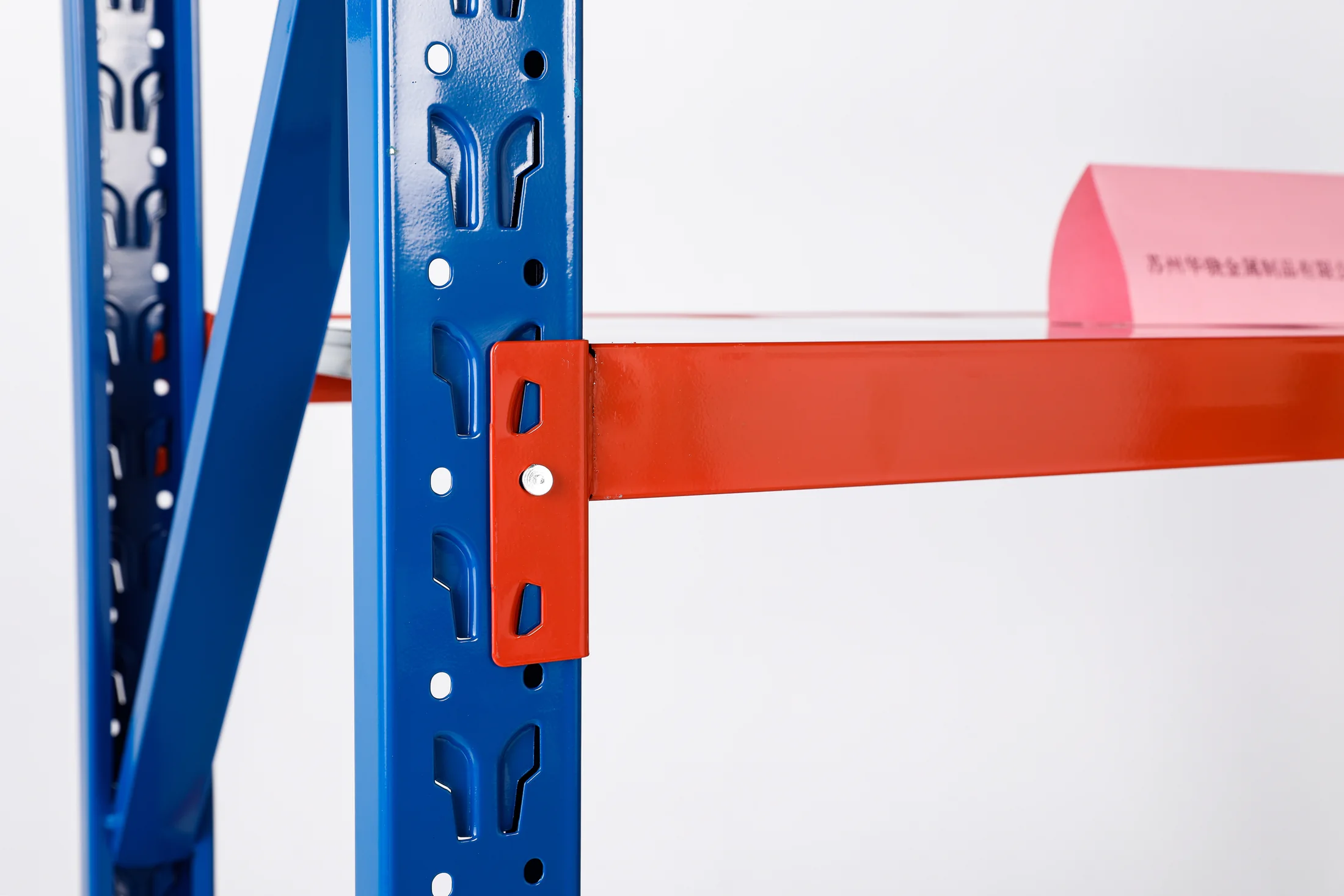

- Hook-in beam connectors allow shelf heights to be repositioned along the perforated uprights

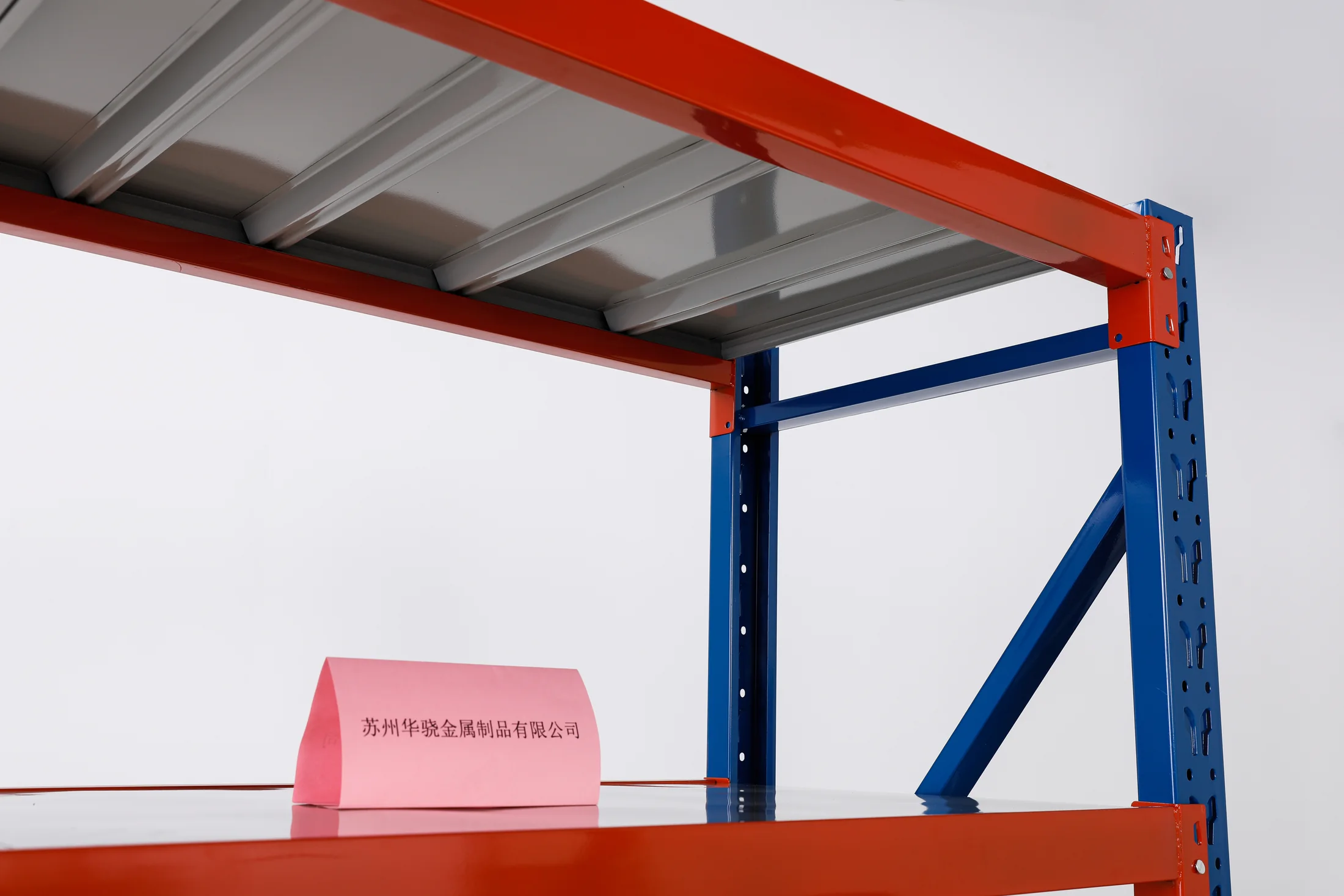

- Reinforced formed-steel panels span between the orange support beams

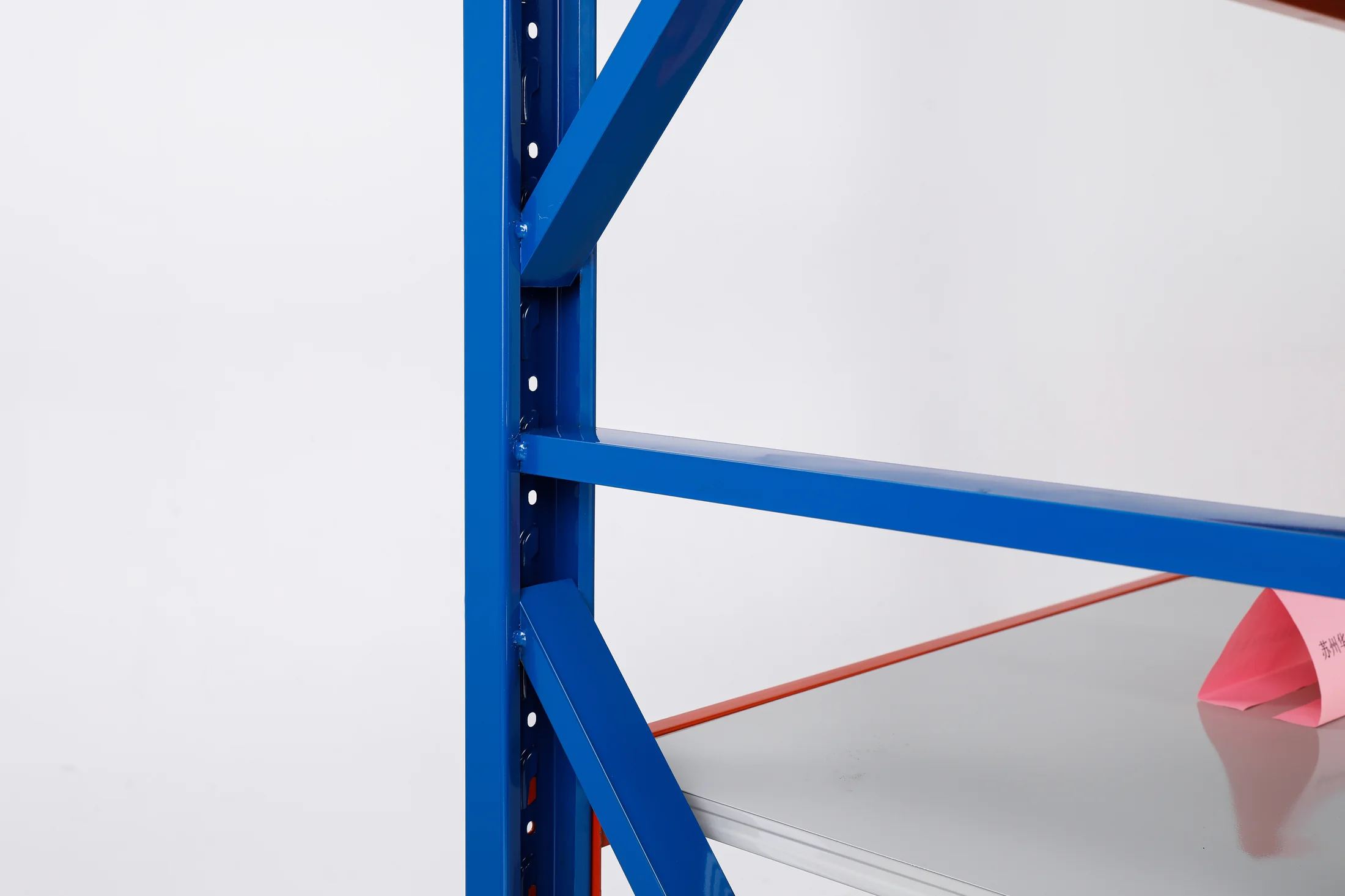

- Diagonal and horizontal frame bracing supports structural stability
- Blue uprights and orange beams improve component visibility in busy storage areas
- Starter and add-on bay layouts can be planned for continuous warehouse shelving runs
Product Specifications
| Product type | Longspan medium-duty warehouse shelving |
| Shelf levels shown | 4 adjustable levels |
| Construction | Modular steel upright, beam, bracing and shelf-panel system |
| Beam connection | Adjustable hook-in connector with retaining fastener |
| Shelf surface | Formed steel shelf panels |
| Frame support | Horizontal and diagonal bracing |
| Surface finish | Powder coated |
| Color shown | Blue uprights with orange beams and gray steel panels |
| Dimensions & capacity | Engineered for the confirmed shelf span, level count and load distribution |
Specifications marked (est.) are typical values — final specs confirmed with your project drawing.
Typical Applications
Product selection guide
How to Specify Blue & Orange Longspan Medium-Duty Shelving Rack for Your Project
This warehouse shelving is intended for warehouse carton and packaged-goods storage, industrial spare parts and components, workshop tools and maintenance supplies, stockroom and manual order-picking areas. A reliable quotation starts with the stored-item dimensions, maximum weight, load distribution, required quantity and available installation area.
As a warehouse racking and shelving manufacturer, Huaxiao Rack can configure level spacing, dimensions, finish and accessories around the confirmed application. Capacity must be evaluated for the complete structure rather than a shelf panel or beam alone.
Information for an accurate factory quotation
- • Stored goods, dimensions and maximum unit weight
- • Required shelf levels, quantity and usable storage area
- • Manual, trolley, forklift or other handling method
- • Project location, delivery terms and installation scope
Blue & Orange Longspan Medium-Duty Shelving Rack FAQs
What is Blue & Orange Longspan Medium-Duty Shelving Rack used for?
Blue & Orange Longspan Medium-Duty Shelving Rack is commonly specified for warehouse carton and packaged-goods storage, industrial spare parts and components, workshop tools and maintenance supplies, stockroom and manual order-picking areas. The correct configuration depends on the stored goods, handling method, available space and required access.
How do I select the size and load capacity for Blue & Orange Longspan Medium-Duty Shelving Rack?
Provide the item or pallet dimensions, maximum load, load distribution, required levels, available floor area and clear height. Huaxiao Rack will use these project inputs to confirm the rack dimensions, components and rated configuration.
Can Blue & Orange Longspan Medium-Duty Shelving Rack be customized by the manufacturer?
Yes. Dimensions, level spacing, finish, accessories and layout can be configured after the application and loading requirements are confirmed. Final specifications are stated in the approved drawing and quotation.
