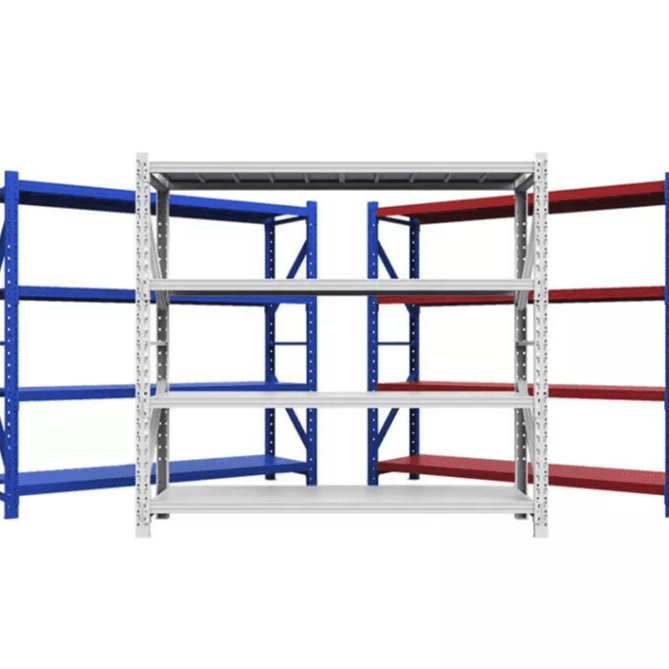

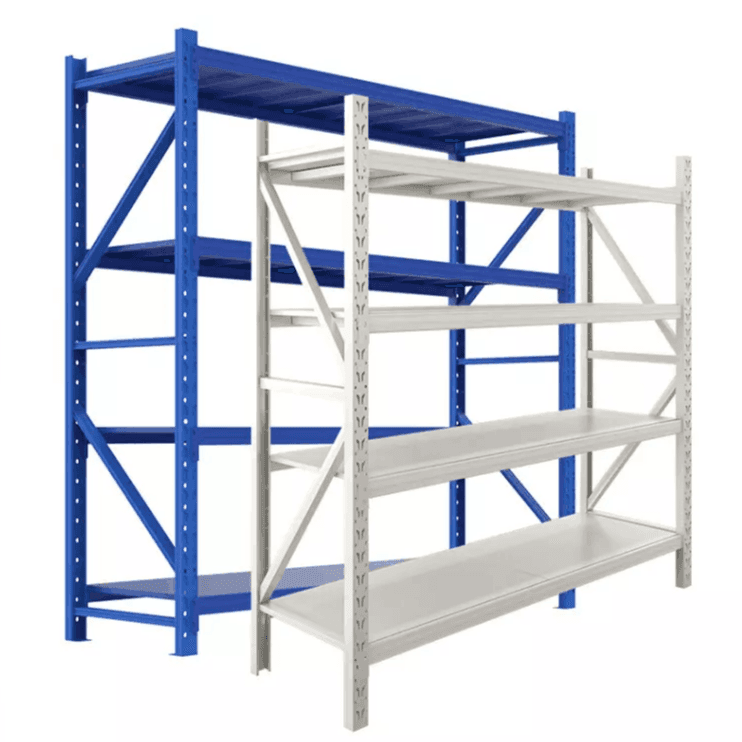

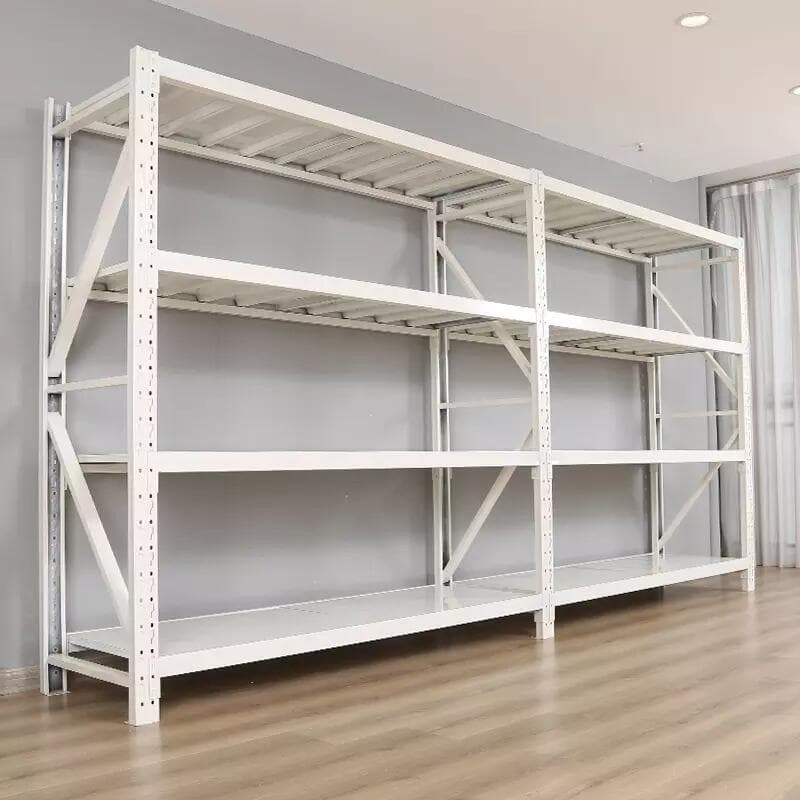

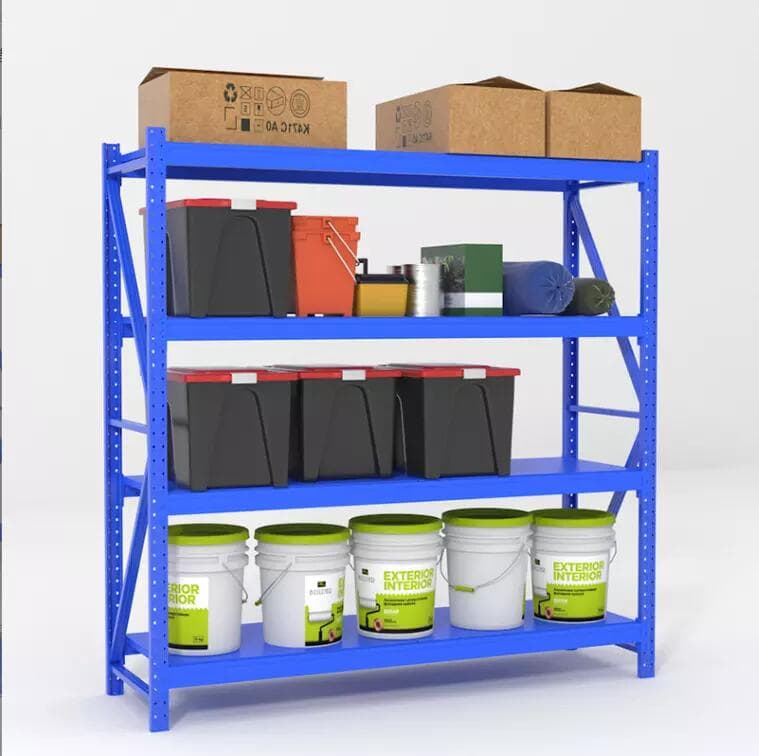

Pallet Racking and Shelving System
A complete pallet racking and shelving system for warehouses, accommodating pallets, containers, trays, boxes and long goods. The multi-tier layout allows vertical stacking that maximizes space and increases storage capacity. Heavy-duty construction with a stable steel-and-wood structure improves safety and material flow.
Key Features
- Multi-tier layout maximizes vertical storage capacity
- Heavy-duty steel-and-wood structure for stability and safety
- Customizable colors, styles and store layouts with 3D design support
- Assembly-type structure, easy to combine and disassemble
- Environmentally friendly materials
Product Specifications
| Model Number | G-WH02 |
| Style | Light Duty |
| Layer | Customized |
| Surface Treatment | Powder Coated Finish |
| Capacity | 30-80 kg/layer |
| Material | Steel and Wood |
| MOQ | 10 Sets |
Specifications marked (est.) are typical values — final specs confirmed with your project drawing.
Typical Applications
Product selection guide
How to Specify Pallet Racking and Shelving System for Your Project
This pallet racking is intended for pallet storage in warehouses, material flow and distribution, self-supporting stores and silos. A reliable quotation starts with the stored-item dimensions, maximum weight, load distribution, required quantity and available installation area.
As a warehouse racking and shelving manufacturer, Huaxiao Rack can configure level spacing, dimensions, finish and accessories around the confirmed application. Capacity must be evaluated for the complete structure rather than a shelf panel or beam alone.
Information for an accurate factory quotation
- • Stored goods, dimensions and maximum unit weight
- • Required shelf levels, quantity and usable storage area
- • Manual, trolley, forklift or other handling method
- • Project location, delivery terms and installation scope
Pallet Racking and Shelving System FAQs
What is Pallet Racking and Shelving System used for?
Pallet Racking and Shelving System is commonly specified for pallet storage in warehouses, material flow and distribution, self-supporting stores and silos. The correct configuration depends on the stored goods, handling method, available space and required access.
How do I select the size and load capacity for Pallet Racking and Shelving System?
Provide the item or pallet dimensions, maximum load, load distribution, required levels, available floor area and clear height. Huaxiao Rack will use these project inputs to confirm the rack dimensions, components and rated configuration.
Can Pallet Racking and Shelving System be customized by the manufacturer?
Yes. Dimensions, level spacing, finish, accessories and layout can be configured after the application and loading requirements are confirmed. Final specifications are stated in the approved drawing and quotation.
