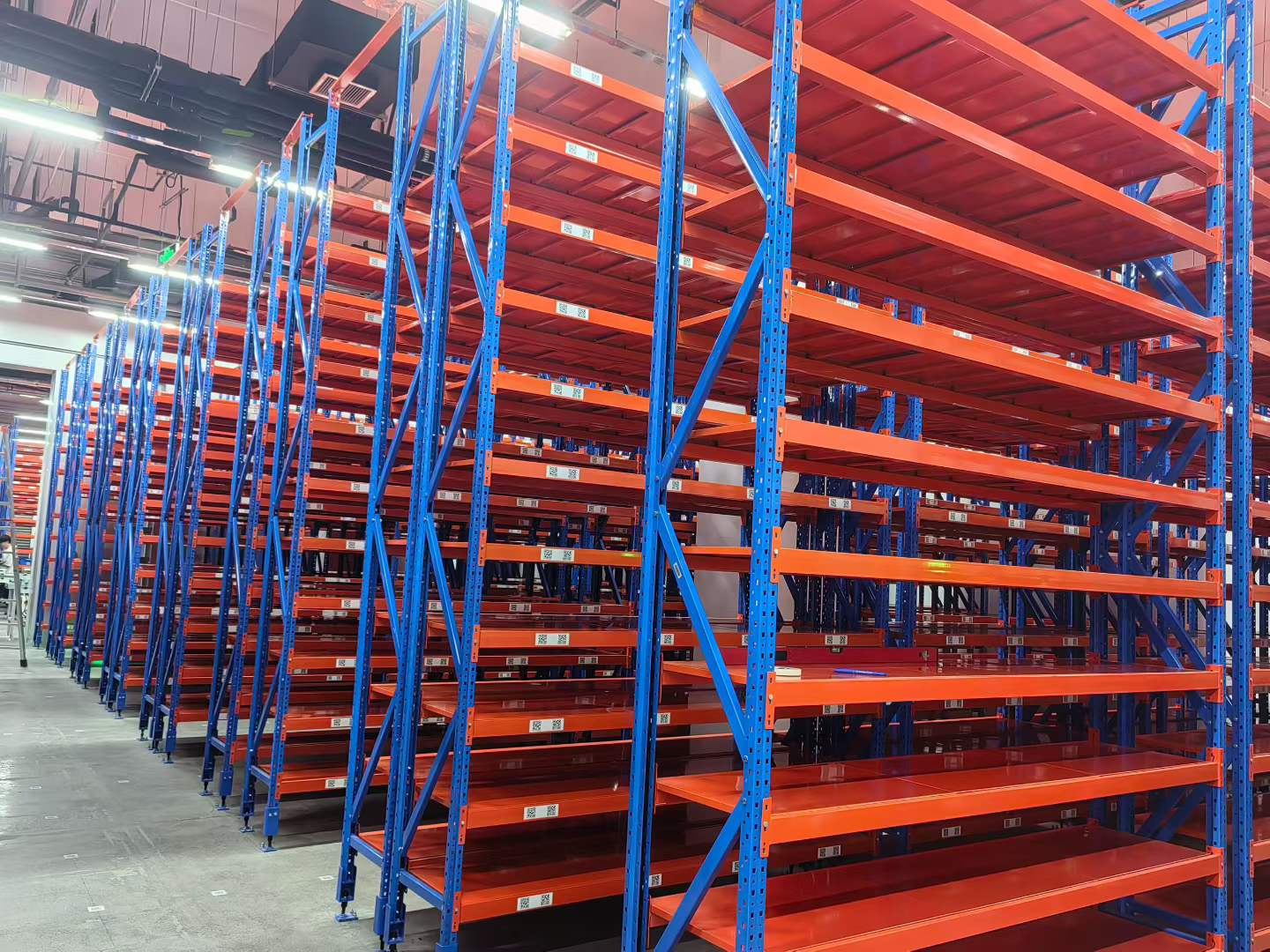

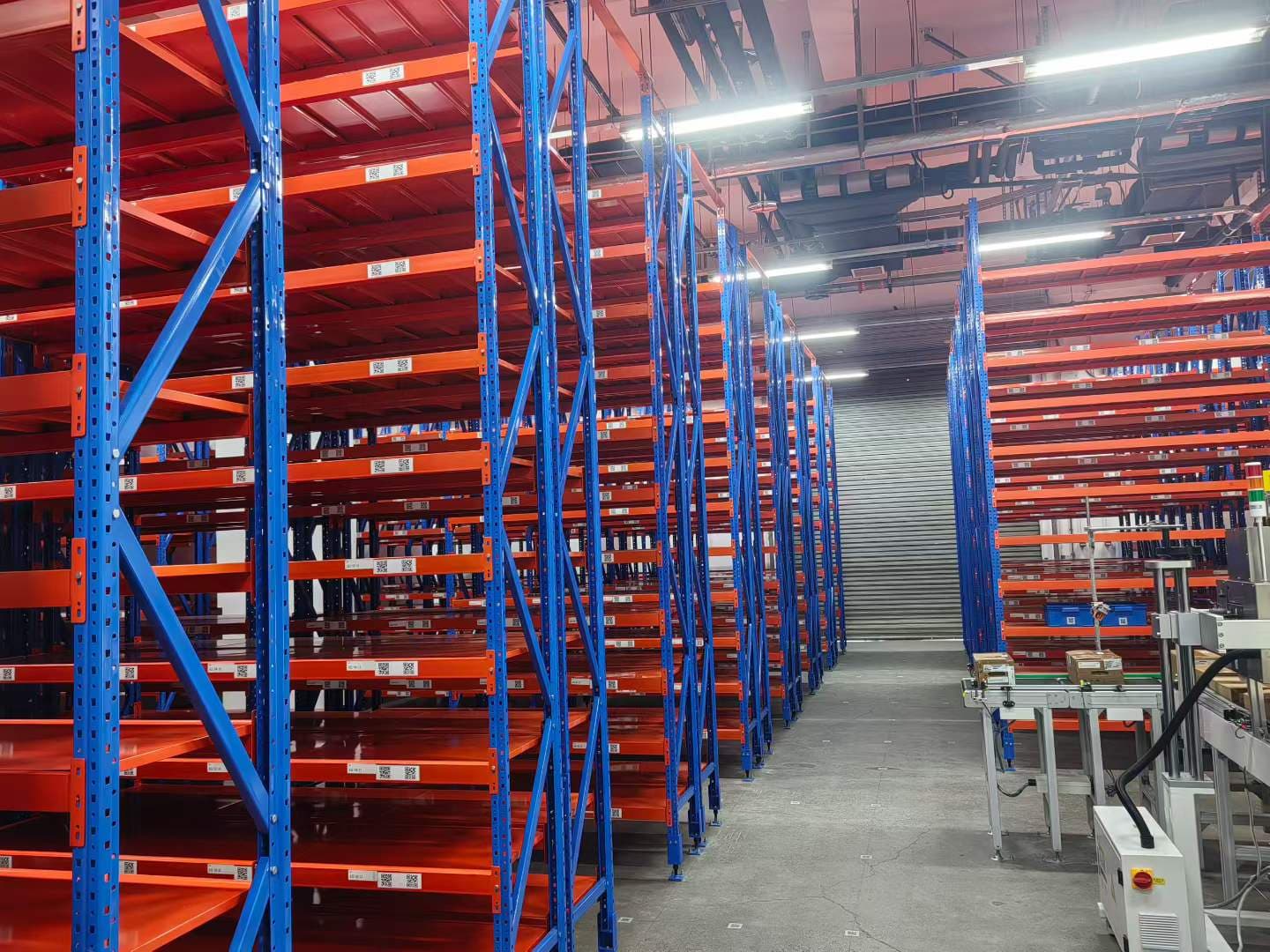

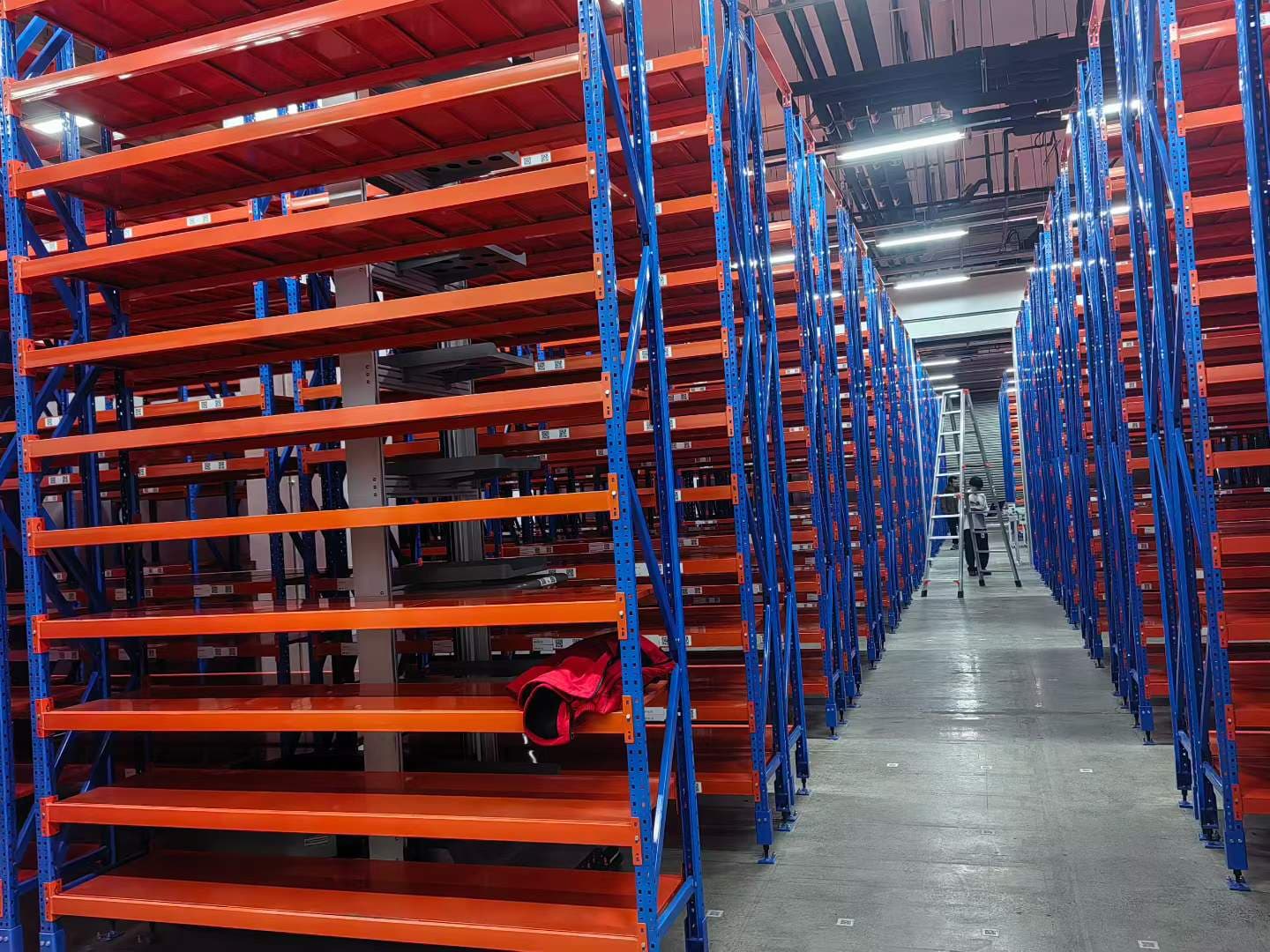

Pallet Racking System
A heavy-duty pallet racking system engineered for high-load palletized storage, fast picking and organized inventory flow. Built from heavy-gauge steel with a powder-coated finish and adjustable beam levels, it maximizes vertical warehouse space while keeping forklift access safe and efficient.
Key Features
- Each level supports up to 3,000 lbs (1,360 kg) of load
- Modular uprights and I-beams allow quick reconfiguration and expansion
- Corrosion-resistant powder coating ensures long-term performance
- Beam locks and column guards enhance operational safety
- Shipped flat-packed for easy on-site assembly
Product Specifications
| Load Capacity | 3,000 lbs (1,360 kg) per level |
| Material | High-strength cold-rolled steel |
| Finish | Powder coating or hot-dip galvanized |
| Pallet Size | 800x1200 mm / 1000x1200 mm |
| Beam Levels | Adjustable |
Specifications marked (est.) are typical values — final specs confirmed with your project drawing.
Typical Applications
Product selection guide
How to Specify Pallet Racking System for Your Project
This pallet racking is intended for distribution centers, e-commerce fulfillment warehouses, manufacturing and cold storage facilities. A reliable quotation starts with the stored-item dimensions, maximum weight, load distribution, required quantity and available installation area.
As a warehouse racking and shelving manufacturer, Huaxiao Rack can configure level spacing, dimensions, finish and accessories around the confirmed application. Capacity must be evaluated for the complete structure rather than a shelf panel or beam alone.
Information for an accurate factory quotation
- • Stored goods, dimensions and maximum unit weight
- • Required shelf levels, quantity and usable storage area
- • Manual, trolley, forklift or other handling method
- • Project location, delivery terms and installation scope
Pallet Racking System FAQs
What is Pallet Racking System used for?
Pallet Racking System is commonly specified for distribution centers, e-commerce fulfillment warehouses, manufacturing and cold storage facilities. The correct configuration depends on the stored goods, handling method, available space and required access.
How do I select the size and load capacity for Pallet Racking System?
Provide the item or pallet dimensions, maximum load, load distribution, required levels, available floor area and clear height. Huaxiao Rack will use these project inputs to confirm the rack dimensions, components and rated configuration.
Can Pallet Racking System be customized by the manufacturer?
Yes. Dimensions, level spacing, finish, accessories and layout can be configured after the application and loading requirements are confirmed. Final specifications are stated in the approved drawing and quotation.
Related Products
Request a Factory Quotation
Send us your project details — warehouse size, load requirements and layout. Our engineers will reply with a tailored solution and factory price.
